Plinth

Solutions Plinth

Technical Specification

Model Matrix & Dimensions
Description	Part No.	Construction	Static Load KGS
Plinth/600X650/ 50MM Height	P-600-650-50	Formed Steel & Powder Coated	1500
Plinth/600X800/ 50MM Height	P-600-800-50
Plinth/600X1000/ 50MM Height	P-600-1000-50
Plinth/600X1200/ 50MM Height	P-600-1200-50
Plinth/800X800/ 50MM Height	P-800-800-50
Plinth/800x1000/ 50MM Height	P-800-1000-50
Plinth/800x1200/ 50MM Height	P-800-1200-50
Plinth/600X650/ 100MM Height	P-600-650-100
Plinth/600X800/ 100MM Height	P-600-800-100
Plinth/600X1000/ 100MM Height	P-600-1000-100
Plinth/600X1200/ 100MM Height	P-600-1200-100
Plinth/800X800/ 100MM Height	P-800-800-100
Plinth/800x1000/ 100MM Height	P-800-1000-100
Plinth/800x1200/ 100MM Height	P-800-1200-100

Plinth

Plinth

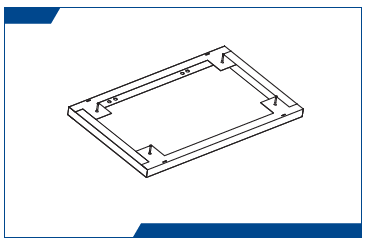

Plinth line diagram
